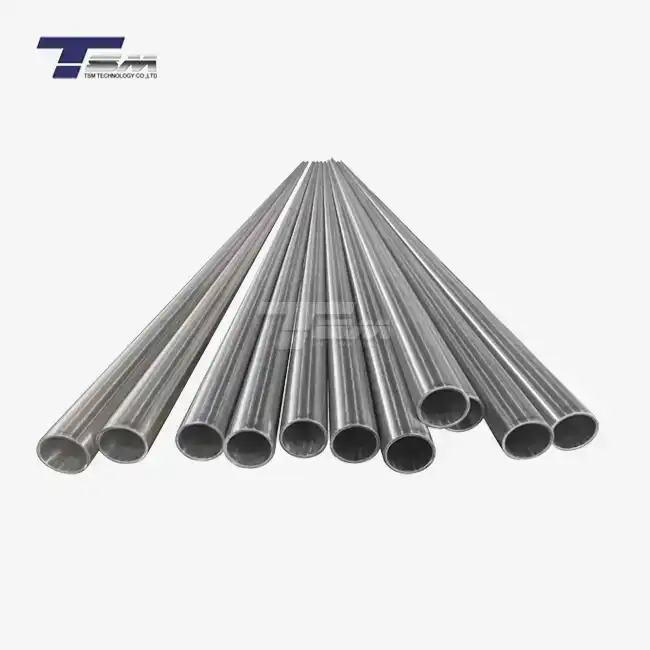

Ti-6Al-4V Grade5 Titanium Pipe and Tube
As a professional grade 5 titanium tube manufacturer with integrated mill in Shaanxi (China Titanium Valley), TSM delivers 6Al-4V titanium tubing for critical applications: aerospace hydraulics, subsea equipment, and high-performance automotive. Seamless and welded options with full traceability.
Manufacturing Excellence: Seamless & Welded Gr5 Titanium Tubing
TSM uses premium VIM-VAR (vacuum arc remelted) billet to produce gr5 titanium tube with consistent alpha-beta microstructure. Our cold pilgering process ensures tight wall concentricity (±5%) and excellent surface finish. For large-diameter thin-wall requirements, we supply welded and drawn 6al-4v titanium tubing that meets ASTM B861. Every batch undergoes solution annealing and pickling to eliminate alpha case.

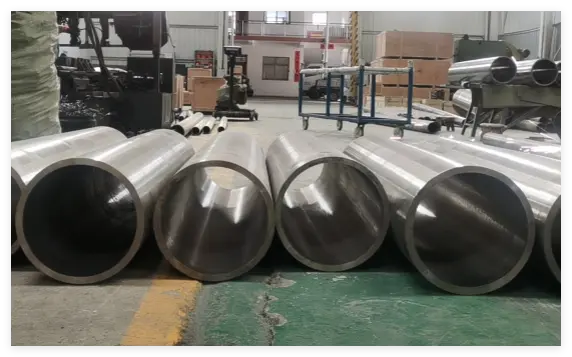

Cold Pilgered Seamless
Ideal for high-pressure hydraulic lines & downhole tools. OD from 6mm up to 219mm, length up to 12,000mm.
Welded + Drawn (W&D)
Cost-effective option for thin-wall (≥0.5mm) with consistent grain structure. 100% radiographic weld inspection.

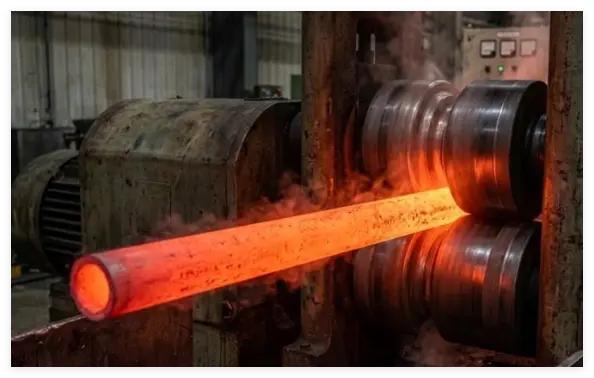

Heat Treatment Options
Annealed (standard), solution treated & aged (STA), or beta annealed. Select STA for max tensile strength up to 1100 MPa.
Dimensional Range & Tolerances – Grade 5 Titanium Tube (ASTM B861)
We supply both imperial and metric sizes. Custom dimensions can be manufactured with short lead time. Below table shows typical precision capabilities for titanium tube grade 5.
| Parameter | Seamless Range | Welded & Drawn Range | Standard Tolerance |
|---|---|---|---|
| Outside Diameter (OD) | 25 – 219.1 mm | 12.7 – 152.4 mm | ±0.05mm (OD≤25.4) / ±0.10mm |
| Wall Thickness (WT) | 0.5 – 20.0 mm | 0.5 – 6.35 mm | ±8% (precision ±5%) |
| Length (Fixed / Random) | Up to 12,000 mm | Up to 15,000 mm | +5 / 0 mm |
| Straightness | 0.5 mm/m max | 0.7 mm/m max | ASTM B861 requirement |
| Surface Roughness (Ra) | ≤1.6 µm (as-pickled), ≤0.8 µm polished | ≤1.6 µm | On request |
Need custom titanium tube grade 5 with tight ovality or special end finishing (grooved, threaded, swaged)? Our engineering team supports prototype runs with MOQ as low as 80 kg.
Chemical Composition – Ti-6Al-4V per ASTM B348
| Element | Al | V | Fe (max) | C (max) | N (max) | H (max) | O (max) | Ti |
|---|---|---|---|---|---|---|---|---|
| wt% | 5.5 – 6.75 | 3.5 – 4.5 | 0.30 | 0.08 | 0.05 | 0.015 | 0.20 | Balance |
Mechanical Properties – All Conditions (Grade 5 Titanium Tubing)
| Condition | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HRC) |
|---|---|---|---|---|
| Annealed | ≥ 895 | ≥ 828 | ≥ 10 | 32 – 36 |
| Solution Treated & Aged (STA) | ≥ 1100 | ≥ 1000 | ≥ 8 | 38 – 42 |
| Beta Annealed | ≥ 930 | ≥ 860 | ≥ 12 | 32 – 35 |
Fatigue performance: Rotating beam fatigue limit of annealed Grade 5 tube typically exceeds 500 MPa at 10^7 cycles – critical for aircraft hydraulic lines and landing gear components.
Custom Supply – Tailored Grade 5 Titanium Pipe for Global Projects
Unlike standard distributors, TSM offers fully customized 6al-4v titanium tubing solutions:
✔ Non-standard OD (e.g., 41.5mm, 73mm) without tooling surcharge.
✔ Thin-wall seamless down to 0.4mm WT for medical cannulas.
✔ Heavy wall (up to 25mm) for high-pressure chambers.
✔ Cut-to-length, chamfered, grooved, or rolled threads.
✔ Small batch orders accepted – prototype quantities in 3 weeks.
As a leading grade 5 titanium tube supplier in China, we support JIT delivery to North America, Europe, and SE Asia.
Quality Assurance – 100% Inspection per Aerospace & Industrial Standards
Each shipment of gr5 titanium tube includes documentation: EN 10204 3.1, MPI/UT reports, dimensional reports. Our NDT capabilities:
- Immersion Ultrasonic Testing (ASTM E2375) for seamless 6al4v titanium tubing
- Eddy Current (ASTM E215) for surface defect detection
- Radiographic Testing (RT) for welded tubing
- PMI (XRF) on every single tube
- Hydrostatic pressure test up to 10,000 psi
Industry Applications Requiring Grade 5 Titanium Tubing
Aerospace & Defense
Hydraulic systems, fuel lines, structural supports. AMS 4945 certified tubing available.
Oil & Gas Downhole
Non-magnetic drill pipe components, sensor housings, high-pressure pump tubes.
Medical Implants
ELI (extra low interstitial) version of Grade 5 tube for surgical instruments. ASTM F136.
Motorsport / High-end Bicycle
Lightweight roll bars, exhaust systems, frames – specific weight reduction requirements.
Logistics – Export-Ready Packaging & Reliable Lead Times

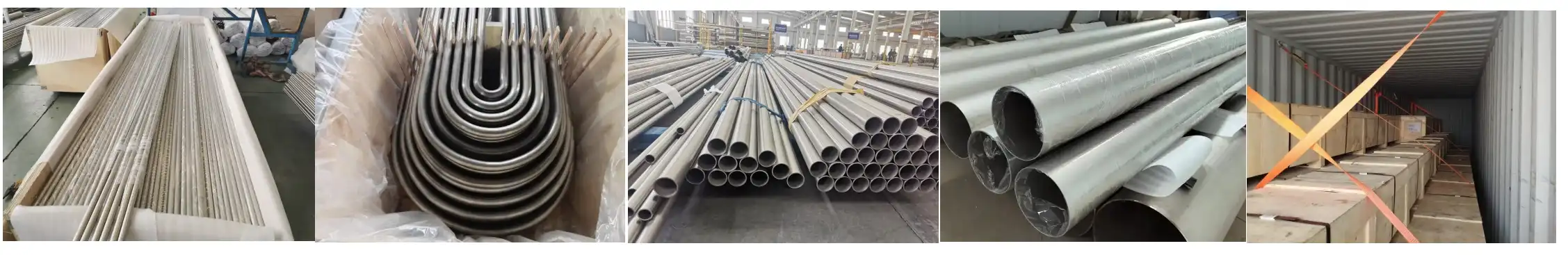

TSM’s Shaanxi facility maintains large inventory of titanium tube grade 5 in common sizes (1/2" to 4" OD). For custom orders: 25–30 days. All tubes are individually protected with end caps, anti-corrosion paper, and wooden crates meeting ISPM-15. We handle all export documents and can coordinate LCL/FCL shipping to any major port.
Request Quotation – Direct from Grade 5 Titanium Tube Manufacturer
Get competitive pricing and free technical support. Send your drawing, required quantity, and desired delivery date. Our sales engineers will propose the best custom titanium tube grade 5 solution for your project.
