Comprehensive Titanium Tube & Pipe Portfolio

Our product range covers all major titanium grades and configurations. As a direct titanium tube manufacturer and supplier, we eliminate intermediaries, offering better cost control. Below is our core supply scope.

•  Seamless Titanium Tubes — OD 3mm~114mm, WT 0.2mm~8mm
•  Welded Titanium Tubes — OD 10mm~219mm, WT 0.5mm~6mm
•  Titanium Pipe (Schedule 5S, 10S, 40S) — 1/8" to 8" NPS
•  Capillary & Precision Tubing for medical / instrumentation
•  Coiled Titanium Tubing — long length, reduced welding joints

Seamless

High pressure integrity

Welded

Cost-effective, large OD

 Titanium Tube & Pipe Specifications & Dimensions (Stock & Custom)

Below is a quick reference for our most popular specifications. All material meets ASTM/ASME standards. For special sizes, use our custom manufacturing service.

Grade	Outer Diameter Range	Wall Thickness	Length	Standard	Typical Application

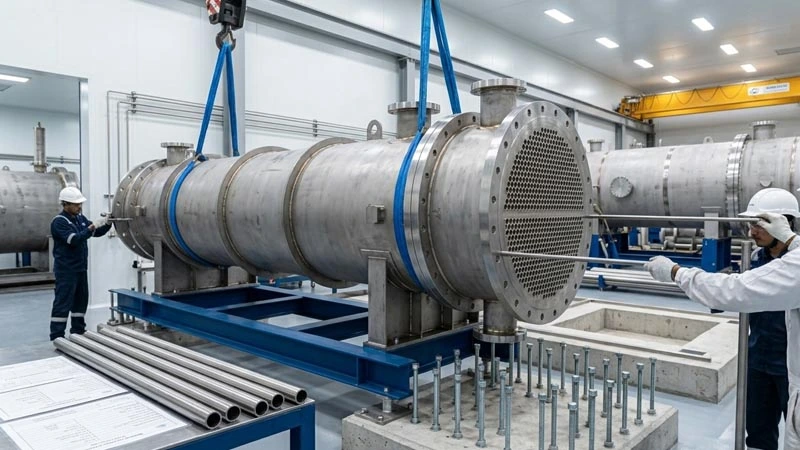

Gr 1 / Gr 2 (CP)	6mm - 219mm	0.5mm - 12.7mm	Up to 18m (SRL/DRL)	ASTM B338 / B861	Heat exchangers, condensers
Gr 5 (Ti-6Al-4V)	3mm - 168mm	0.4mm - 8mm	Random / fixed	AMS 4935 / ASTM B338	Aerospace hydraulic, structural
Gr 7 (Pd alloy)	6mm - 114mm	0.5mm - 6mm	Max 14m	ASTM B338	Chemical / seawater corrosion
Gr 12 (Mo+Ni)	10mm - 88.9mm	0.7mm - 7mm	Up to 12m	ASTM B338	High temp / acidic media
Gr 9 / Gr 23	3mm - 50mm	0.3mm - 5mm	Coil or straight	ASTM B338 / B348	Medical, sports

Surface: Pickled, Polished, Bright annealed

Tolerances: ±0.05mm for precision tubing

Titanium Pipe vs. Titanium Tube: Critical Distinction for Engineers

 Titanium Pipe

Pipes are typically specified by Nominal Pipe Size (NPS) and schedule (wall thickness). Our titanium pipes are used for fluid transport, process piping, and structural applications. At TSM we stock schedules 10S, 40S, 80S in grades 2 and 5.
Common stock: 1/2" SCH40, 2" SCH10S

 Titanium Tube

Tubes are defined by exact OD and wall thickness (inches or mm). More precise, used in heat transfer, instrumentation, and mechanical systems. Our titanium tubing meets stringent eddy current / hydro testing.
Unique insight: Over 73% of our custom orders involve tube bending or coiling — we maintain in-house tooling for tight radii.

📊 2024–2025 Procurement Insight: Average titanium tube cost index (TSM internal data)

Based on our export analytics, Grade 2 titanium tube price (FOB China) ranges $38–$55/kg depending on quantity and spec. Grade 5 premium adds 30-40%. Our stock program can reduce lead time from 6 weeks to 3 days.
 Request detailed price breakdown

Proven Applications of Titanium Tubing Across Industries

Oil & Gas

Downhole, subsea

Chemical

Heat exchangers

Aerospace

Hydraulic lines

Desalination

Brine heaters

Medical

Implants, surgical

Our titanium tubes have been installed in over 200 desalination plants globally. In a recent project for a Middle East client, we supplied 12,500 meters of Gr 2 welded titanium tubing for a multi-stage flash (MSF) unit — operating continuously since 2023 with zero corrosion issues.

 Custom Titanium Tube & Pipe Manufacturing — Tailored to Your Print

As an integrated titanium tube manufacturer, we offer extensive value-added services. Our engineering team works from drawings to finished components. Capabilities include:

• Cut-to-length (tolerance ±0.5mm)
• Bending & coiling (CNC mandrel bending)
• Swaging, flaring, beveling
• Heat treatment (annealing per AMS 2750)
• Non-destructive testing (ET, UT, hydrostatic)

Looking for titanium tubes for sale with custom end finishing? Our MOQ for custom fabrication starts at just 50 meters. Learn more about our titanium fabrication center →

Certified Quality: Full Traceability from Melt to Tube

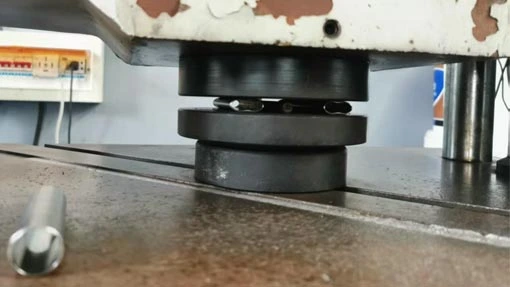

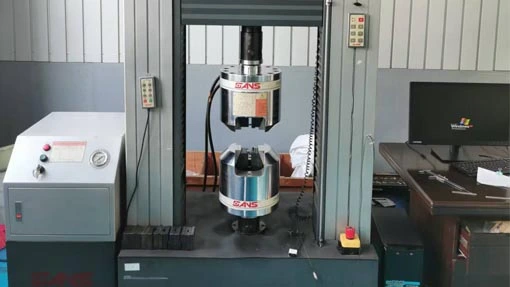

Every titanium tube ships with MTR (Material Test Report) 3.1 or 3.2 as per EN 10204. We perform in-house chemical analysis (OES), mechanical testing, and 100% hydro/eddy current. Certifications: ISO 9001:2015, PED 2014/68/EU, and we comply with NORSOK for offshore.

 Unique TSM practice: we retain a sample from each heat for 10 years, enabling forensic traceability — crucial for aerospace and nuclear clients.

ISO 9001 · ASME · PED · AD2000

 Titanium Tube Stock Program – Immediate Availability

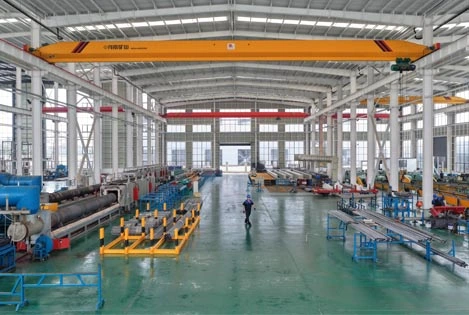

We maintain one of the largest titanium tube inventories in Western China. Popular sizes in Gr2, Gr5, Gr7 are ready to ship. Below is a snapshot of current stock (updated bi-weekly):

Description	OD x WT (mm)	Length	Qty (meters)	Location
Titanium Tube Gr2 seamless	19.05 x 1.65	6m	6,200	Shaanxi
Titanium Tube Gr2 welded	25.4 x 0.89	18.3m	9,800	Shaanxi / Rotterdam hub*
Titanium Pipe Gr2 SCH10S	2" NPS (60.3 x 2.77)	6m	2,100	Stock
Titanium Tube Gr5 seamless	12.7 x 1.24	Random 3-4m	1,450	Shaanxi

 *Rotterdam hub enables 3-day delivery to EU. Contact us for stock verification and titanium tube price.

What Drives Titanium Tube Cost? Transparent Pricing Factors

Understanding cost helps B2B buyers plan budgets. The primary drivers are: raw titanium sponge price (currently stable ~$7-8/kg), grade, dimension, and quantity. At TSM, we provide cost breakdowns that include alloy surcharge, processing, and testing. Our data shows that ordering full mill runs (500kg+) reduces per-kg cost by 12-18%.

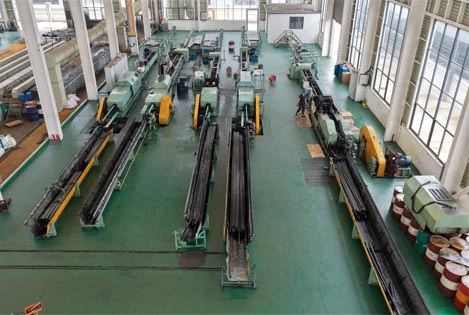

 Expert insight: In the last 3 years, lead times for custom titanium tubing extended due to aerospace demand. TSM invested in additional pilger mills, cutting average lead time from 55 to 32 days. We also offer a "stock reservation" program for regular buyers — lock in volume and price for 6 months.

Why Global Buyers Choose TSM as Their Titanium Tube Supplier

•  18+ years specialized in titanium — deep metallurgical knowledge
•  Export to 40+ countries — familiar with international logistics & docs
•  Direct mill pricing — no trader markup
•  Rapid response: quotes within 4 hours, technical support 24/7

•  In-house lab for chemistry & mechanical
•  Custom packaging for sea/air freight
•  Flexible payment terms for established partners

Frequently Asked Questions – Titanium Tubes & Pipes

🔹 What is the minimum order quantity (MOQ) for titanium tubing?

For stock sizes, no strict MOQ — we can supply from a single length. For custom manufacturing, MOQ is typically 50-100 meters depending on complexity.

🔹 Do you supply titanium tube samples?

Yes, we provide free samples (up to 150mm length) for evaluation; customer covers freight.

🔹 How to buy titanium tubes from TSM?

Simply send your specification via our quote form or email. We'll return a proforma invoice with lead time and shipping options.

🔹 Can you supply titanium pipe with B16.5 flanges?

We can coordinate supply of matching titanium fittings. Please refer to our titanium fittings page.
