Titanium WN Flange
Supply Ability: 300 Tons/month
Grade: GR2/GR7/GR12
Standard: ASME B16.5, B16.47
Pressure Rating: Class 150 - 2500
Face Type: RF, FF, RTJ
Custom Services: Non-standard sizes, special tolerances (±0.05mm)
Material Certification: MTC and SGS test reports available
100% radiographically tested with EN 10204 3.2 certification.
Delivery time: Usually about 10-25 days（According to your order quantity）

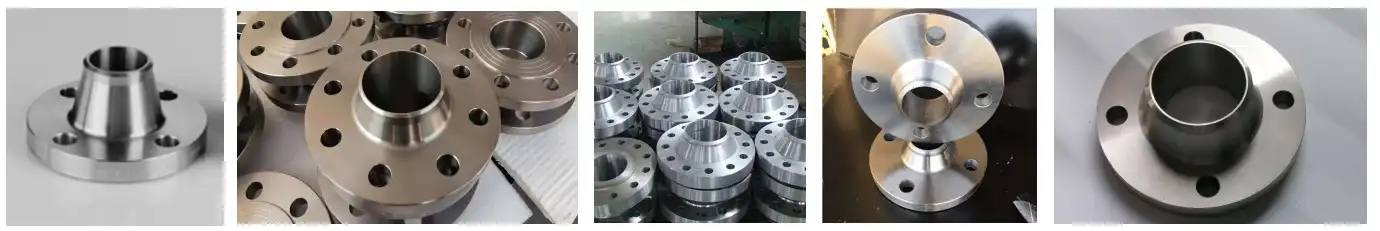

Titanium WN Flange Manufacturer and Supplier
At TSM Technology Co., Ltd., we're proud to be a leading manufacturer and supplier of high-quality Titanium WN Flanges. Our advanced manufacturing processes and stringent quality control ensure that our products meet the most demanding industry standards. With superior strength, exceptional corrosion resistance, and lightweight properties, our flanges are ideal for various challenging environments, from offshore oil rigs to chemical processing plants.
What are Titanium WN Flanges?
The Titanium WN Flanges are welding neck flanges made from titanium alloys. They provide a secure, leak-tight connection in piping systems, particularly in high-pressure and corrosive environments. The welding neck design allows for a smooth transition between the flange and pipe, reducing turbulence and stress concentration.
Specification
| Property | Value |
|---|---|
| Material | Grade 2, Grade 5 (Ti-6Al-4V) |
| Size Range | 1/2" to 24" |
| Pressure Class | 150# to 2500# |
| Face Type | Raised Face, Flat Face |
| Standards | ASME B16.5, ASTM B381 |
Physical and Chemical Properties
| Property | Grade 2 Titanium | Grade 5 Titanium |
|---|---|---|
| Tensile Strength | 345 MPa | 895 MPa |
| Yield Strength | 275 MPa | 828 MPa |
| Elongation | 20% | 10% |
| Density | 4.51 g/cm³ | 4.43 g/cm³ |
| Melting Point | 1660°C | 1660°C |
Product Standards
Our products comply with international standards, including:
- ASME B16.5
- ASTM B381
- NACE MR0175 (for sour service applications)
Features of Titanium WN Flanges
- Exceptional corrosion resistance
- High strength-to-weight ratio
- Excellent fatigue resistance
- Low thermal expansion
- Non-magnetic properties
- Biocompatibility (for medical applications)
Applications
Titanium WN Flanges find use in various industries:
- Oil and gas exploration
- Chemical processing
- Desalination plants
- Aerospace
- Marine environments
- Medical equipment
Production Process of Titanium WN Flanges
- Raw material selection and testing
- Forging or machining of flange body
- Heat treatment for optimal mechanical properties
- Precision machining of bolt holes and sealing surfaces
- Surface finishing (e.g., polishing, passivation)
- Quality inspection and testing
Quality Inspection
Every product undergoes rigorous quality checks:
- Dimensional inspection
- Material composition analysis
- Non-destructive testing (NDT)
- Hydrostatic pressure testing
- Surface finish evaluation
Why Choose TSM Technology?
TSM Technology stands out as your premier choice for products. Our cutting-edge material technology ensures high-purity titanium alloys, while our precision manufacturing delivers ultra-tight tolerances. We offer customized surface treatments to meet specific industry needs, from biomedical inertness to chemical corrosion resistance. Our comprehensive quality assurance system, backed by ISO 9001, AS9100D, and NADCAP certifications, guarantees product excellence. We excel in traceability management and sustainable production practices. Our industry-specific solutions, rapid response to special requirements, and global supply chain ensure we meet diverse client needs. With strategic raw material reserves and smart logistics, we provide unparalleled reliability and efficiency in titanium flange supply.

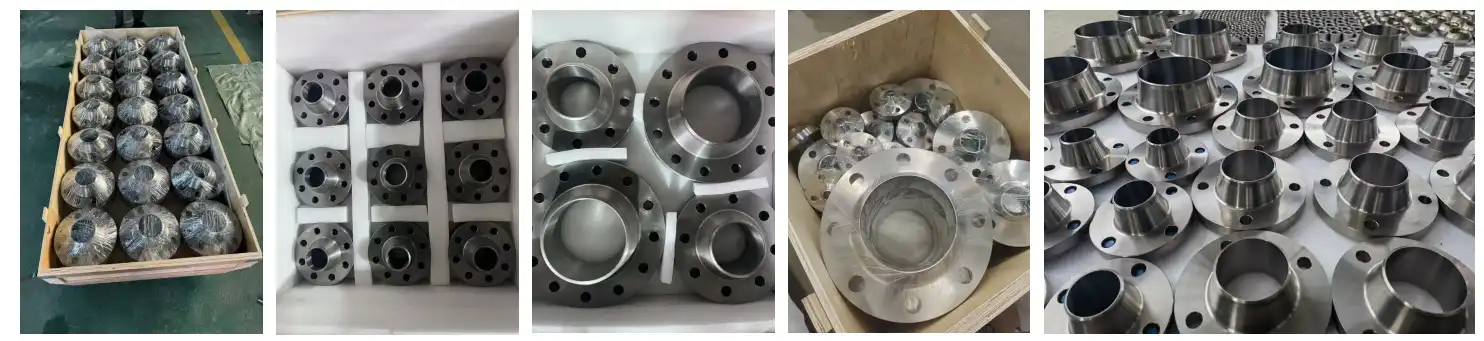

Package and Shipping
TSM Technology ensures secure product delivery with protective packaging and wooden crates/pallets for bulk orders. We offer global shipping solutions with express delivery options to meet urgent requirements, guaranteeing your order arrives safely and on time.
FAQ
- Q: What makes titanium flanges superior to stainless steel?
A: Titanium flanges offer better corrosion resistance, higher strength-to-weight ratio, and superior performance in extreme temperatures. - Q: Can you provide custom titanium flange designs?
A: Yes, we offer custom design and manufacturing services to meet specific project requirements. - Q: What is the lead time for products?
A: Standard sizes typically ship within 2-4 weeks. Custom orders may require 4-8 weeks. - Q: Do you provide material certifications with your flanges?
A: Yes, we provide full material traceability and test certificates with every order. - Q: Are your products suitable for cryogenic applications?
A: Yes, our titanium flanges maintain excellent mechanical properties at very low temperatures.
Contact Us
Ready to upgrade your piping systems with our premium Titanium WN Flanges? Contact our expert team today for quotes, technical support, or custom orders.
Email: info@tsm-technology.com
