Where Are Nickel Tubes Used From Petrochemical to Marine Applications
2025-06-19

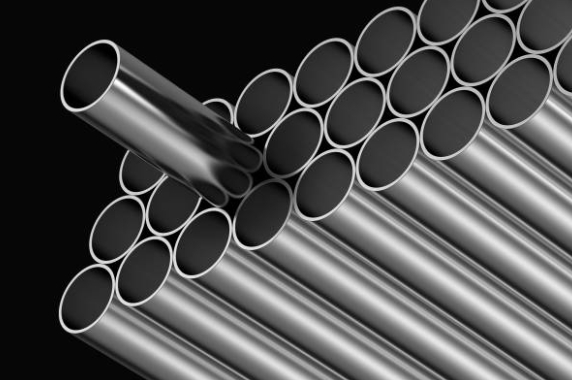

Nickel and nickel alloy tubes are critical components in industries that demand exceptional corrosion resistance, high-temperature strength, and long-term reliability. From harsh chemical environments to deep-sea applications, nickel tubes provide unmatched performance where other materials fail. This article explores their key applications across major industries, with a focus on technical specifications and material advantages.
Petrochemical Industry
Nickel tubes (e.g., Inconel 625, Hastelloy C276) are widely used in:
| Application | Alloy Type | Key Properties Required |
|---|---|---|
| Ethylene cracker tubes | Incoloy 800HT | High creep resistance (800°C+) |
| Hydroprocessing pipes | Hastelloy B3 | HCl/H₂SO₄ resistance |
| Catalyst tubing | Nickel 201 | Pure nickel (99.6% Ni) for inertness |
Why Nickel?
-
Resists sulfur compounds and acidic byproducts
-
Maintains strength in pyrolysis furnaces (up to 1100°C)
Power Generation
In nuclear and fossil fuel plants:
| Component | Typical Alloy | Operating Conditions |
|---|---|---|
| Steam generator tubes | Inconel 690 | 300°C, 15MPa (PWR reactors) |
| Boiler superheaters | Incoloy 800 | 700°C, flue gas exposure |
| Turbine condensers | Alloy 400 (Monel) | Seawater cooling resistance |
Key Advantage:
-
Ni-Cr alloys prevent stress corrosion cracking (SCC) in high-pressure steam
Marine & Offshore
For seawater and subsea systems:
| Use Case | Material | Why Nickel? |
|---|---|---|
| Desalination heat tubes | Titanium-stabilized Ni alloys | Chloride ion resistance |
| Subsea umbilicals | Alloy 625 (UNS N06625) | Fatigue resistance at 4000m depth |
| Ballast water pipes | Cu-Ni 90/10 | Biofouling prevention |
Data Point:
-
Ni-Cu alloys (e.g., Monel) show <0.1mm/year corrosion rate in seawater
Chemical Processing
Handling aggressive media:
| Equipment | Alloy Choice | Chemical Resistance |
|---|---|---|
| Acid evaporators | Hastelloy C22 | HNO₃ + HCl mixtures |
| Caustic soda lines | Nickel 200 | NaOH up to 50% concentration |
| Chlorine gas headers | Inconel 600 | Dry Cl₂ gas (up to 540°C) |
Technical Note:
-
Ni-Mo alloys (e.g., Hastelloy B2) tolerate reducing acids at pH <0
Emerging Applications
| Sector | Innovative Use | Alloy Trend |
|---|---|---|
| Hydrogen energy | High-pressure H₂ storage vessels | Inconel 718 (AGE treated) |
| Semiconductor | Ultra-high-purity (UHP) gas delivery systems | Electropolished Ni 201 |
| 3D printing | Powder-bed fusion (LPBF) feedstock | Ni 625 spherical powder |
Why Specify Nickel Tubes?
- Longer Service Life: 2-3x lifespan vs. stainless steel in chlorides
- Cost Efficiency: Reduced downtime/maintenance offsets higher initial cost
- Regulatory Compliance: Meets NACE MR0175, ASME BPVC, and EN 10204
Expert Tip: For sour service (H₂S environments), prioritize Incoloy 825 with ≥40% Ni content to prevent sulfide stress cracking.
